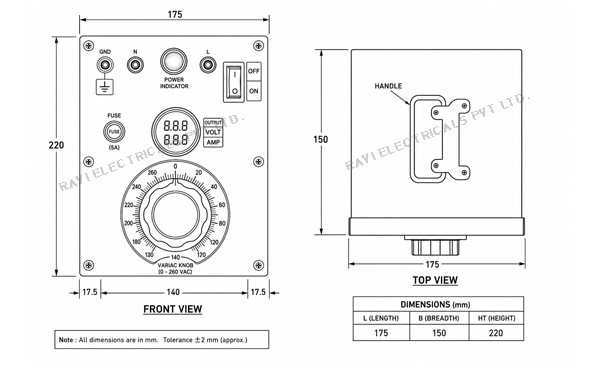

Dimensions in mm (Approx)
|

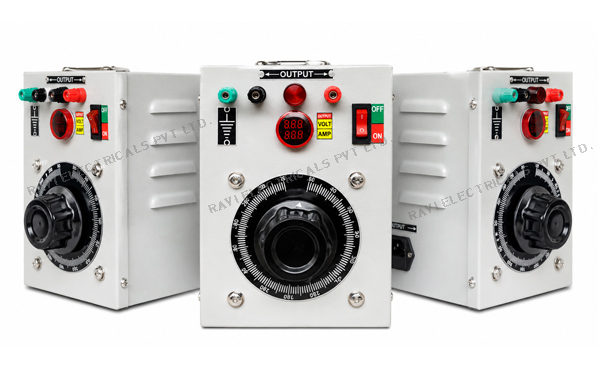

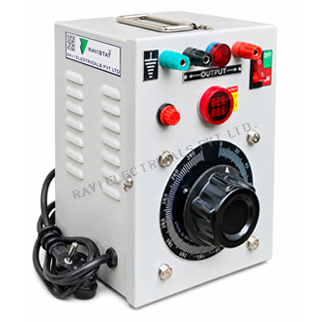

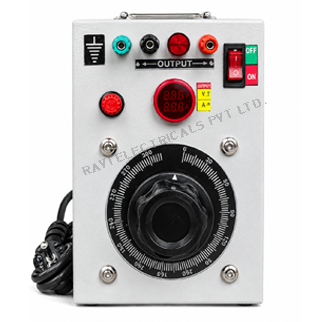

RAVISTAT Variable Transformer Single Phase, Close / Project / Enclosed Type Input : 240V 50/60Hz Output : 0-270V 50Hz. Model : P-1 |
||||||
| TYPE. | AMP | W | D | H | MAX V.A. |
Approx wt. in kg |
|---|---|---|---|---|---|---|
| 2P-1 | 2Amp | 130 | 130 | 155 | 540 | 4.200 |
| 3P-1 | 3Amp | 130 | 130 | 155 | 810 | 4.600 |
Dimensions in mm (Approx)
|
RAVISTAT Variable Transformer Single Phase, Close / Project Type Input : 240V 50/60Hz Output : 0-270V 50Hz. Model : P-1 |
|||||||
| TYPE. | AMP | A | B | C | H | MAX V.A. |
Approx wt. in kg |
|---|---|---|---|---|---|---|---|
| 4P-1 | 4Amps | 175 | 225 | 146 | 160 | 1080 | 7.500 |
| 6P-1 | 6Amps | 175 | 225 | 146 | 160 | 1620 | 8.000 |
| 8P-1 | 8Amps | 175 | 225 | 146 | 185 | 2160 | 9.500 |
| 10P-1 | 10Amps | 175 | 225 | 146 | 185 | 2700 | 10.000 |
| 15P-1 | 15Amps | 235 | 270 | 176 | 200 | 4050 | 15.500 |
| 20P-1 | 20Amps | 235 | 270 | 176 | 200 | 5400 | 18.000 |
| 28P-1 | 28Amps | 320 | 375 | 238 | 225 | 7560 | 26.000 |
Note : Not to scale
Maximum operating temperature=45° C,
Dimensions are subject to change without notice
| Maximum Current | 1A | 2A | 3A | 4A | 6A | 8A | 10A | 15A | 20A | 25A |
| Continuous Current | 1A | 1.8A | 2.5A | 3.5A | 5A | 6.5A | 8A | 12A | 17A | 25A |
|
Variac 20Ampere Model no:20P-1VAM with Volts Amps Meter |
||||||
| INPUT | 240V AC 50/60Hz. | |||||
|---|---|---|---|---|---|---|
| OUTPUT | 0-270V. | |||||
| Phase | Single | |||||
| Type | Close/Enclosed Type. | |||||
| Dimensions in CM | ||||||
| L 28.5 x B 32 X H 17.5 | ||||||
| Weight – 16.5 KG | ||||||
|
Variac 28Amper Model no : 28P-1VAM with Volts Amps Meter |
||||||
| INPUT | 240V AC 50/60Hz. | |||||
|---|---|---|---|---|---|---|
| OUTPUT | 0-270V. | |||||
| Phase | Single | |||||
| Type | Closed Type | |||||
| Dimensions in CM | ||||||
| L 37.5 x B 32 X H 22.5 | ||||||
| Weight | 26 KG | |||||
